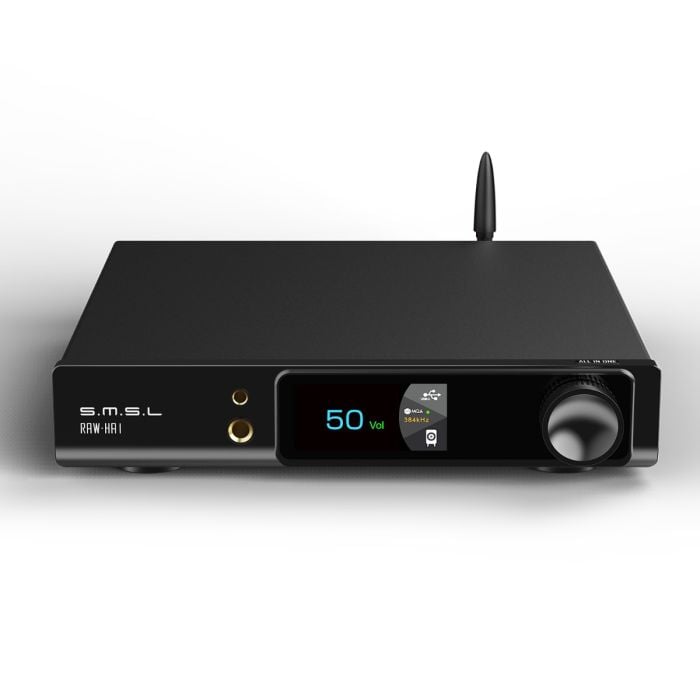

The SMSL RAW-HA1 is a fully featured stereo amplifier with built in DAC, Bluetooth, and even headphone outputs.
RAW-HA1 features a new digital high-power amplifier chip from Infineon, Germany, offering higher quality, high efficiency, and low power consumption.
It uses JRC’s electronic volume control chip NJW1194 from Japan, ensuring precise volume control and ultra-low distortion.
It incorporates the new 3rd generation XMOS XU-316, with PCM support up to 32bit/768kHz and DSD support up to DSD256.
The latest Bluetooth technology supports LDAC, APTX/HD, SBC, and AAC.
The product utilizes the latest audio decoding chip, CS43131, by Cirrus Logic.
The shell is made from all-aluminum alloy, CNC precision processed, with anodizing technology and chamfering process, offering exquisite workmanship and a delicate touch.
The user-friendly operating system is simple and easy to understand, and it is equipped with a full-featured remote control function.
A large number of professional Hi-Fi audio components are used to enhance the sound experience.
The product has high-quality gold-plated input and output terminals.
It includes a perfect protection circuit for overheating, overcurrent, and other issues.
Lastly, it has a built-in high-quality power supply, specially designed for audio.
| Inputs | HDMI(ARC)/RCA/BT/USB/Optical/Coaxial |
| THD+N | 0.003% |
| SNR | 108dB |
| Channel Seperation | 87dB |
| Input Sensitivty / Input Impedance | 245mV/22kΩ |
| Output Power (Stereo Speaker) |
|
| Headphone Output Power | 30mW (32Ω) |
| USB Transmission | USB2.0 (Asynchronous Transfer) |
| USB Compatibility | Windows 7/8/8.1/10/11/Mac OSX/Linux |
| Sampling rate and bit depth (USB) |
|
| Sampling rate and bit depth (Optical / Coaxial) |
|
| Bluetooth Specification | 5.1 (SBC, aptX, aptX HD, LDAC) |
| Power consumption | 40W (Normal volume) |
| Size | 219x45x190mm (WxHxD) |
| Weight | 1.55kg |
