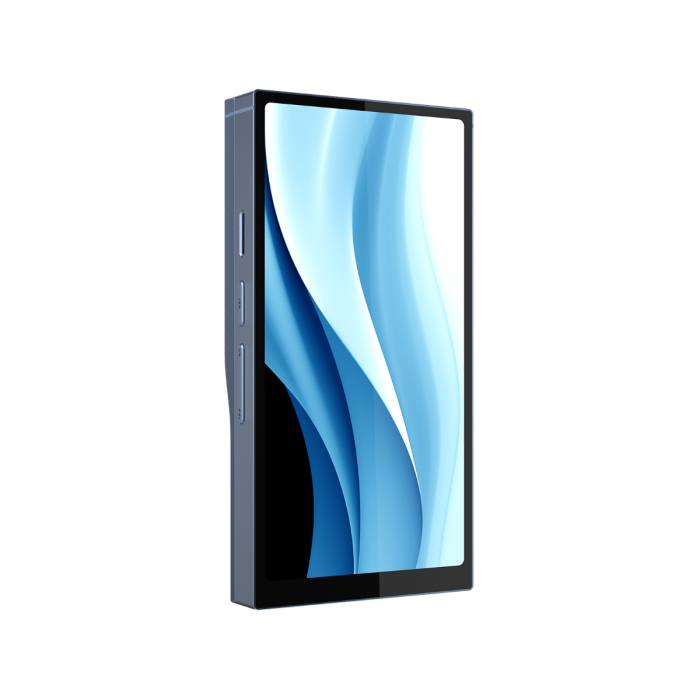

HiBy R6 Pro MAX Android DAP
A cutting edge Android DAP with enhanced power output
- Australian Stock
- Australian Warranty
- Authorised Reseller
Found it cheaper somewhere else? Request a price match.
Don't risk purchasing a fake!
MiniDisc are Authorised Resellers
21 Day Change of Mind Returns
Terms and conditions apply
Free Shipping Australia Wide
Free Shipping & Express available
Unmatched advice and support
Always happy to help
The HiBy R6 Pro MAX opens up a new tier of performance alongside the popular R6 Pro, with an upgraded DAC setup and higher output power.
The R6Pro MAX features two flagship ESS ES9039MS Pro DAC chips for class leading musical detail retrieval. 8-way indepdendent I/V conversion via OPA1612 chips in conjunction with HiBy's meticulous circuit design unleashes the full potential of the ESS flagship DACs.
The analog section of the HiBy R6Pro MAX features 2 handpicked OPA1622 chips paired with four ELNA electrolytic caps, providing fine detail with tube like warmth. A four-way independent power supply system was skillfully designed for the R6Pro MAX to maximise performance and minimise inteference. Realising an incredibly low 0.0003% THD even with the 4.4mm output at HIgh Gain, with a maximum output power of 678mW, HiBy achieves the goal of producing high power with low noise.
Support for PD 3.1 40w fast charging and up to 10 hours play time / 180 hours standby time mean that the R6Pro MAX is well suited for everyday use.
The flagship Qualcomm Snapdragon 665, 6GB RAM and modern Android 12 support, combined with HiBy's long standing experience with hardware and software integration ensures R6Pro MAX delivers fantastic inteference performance. 128GB ROM with storage expandable by MicroSD card ensures you can fit a large lossless music collection. Industry leading DSD1024 and PCM768kHz / 32 bit decoding means broad format support from now into the future.
The bold, curved chassis, combined with the R6Pro MAX's 5.9" high resolution (2160*1080) display with oleophobic coated Corning Gorilla Glass ensures that the HiBy R6Pro MAX looks as good as it sounds.
Experience the cutting edge of DAP design with the HiBy R6Pro MAX.
- Dual ES9039SM Pro
- 8-way I/V Amplification
- Flagship-grade analog components
- Four-way Independent power supply system
- 0.0003%THD
- Large 8200mAh battery
- 40W PD3.1 Fast charging
- Qualcomm Snapdragon 665
- 6GB RAM +128GB ROM
- Open Android 12
- System-wide SRC bypass
- Femtosecond-grade audio oscillators
- DSD1024 PCM768
- MQA 16X unfolding
- 5.9” 1080p large display
- HiByCast system-wide remote control
- 1 x R6 Pro MAX
- 1 x PU Leather Case
- 2 x Front Panel Screen Protector (1 pre-applied)
- 1 x USB Type C to Type C Charging / Data Cable
- 1 x Type C to Type A USB Adapter
- 1 x User Guide
- 1 x Warranty Card
- 1 x QC Card
Audio Specifications
|
Output Port |
3.5mm LO |
4.4mm LO |
|
Voltage Swing |
2.3Vrms |
4.6Vrms |
|
Minimum THD |
0.0003% |
0.0002% |
|
Noise Floor |
1.37UVrms |
1.65uVrms |
|
SNR |
124dBrA |
129dBrA |
|
Channel separation |
109dBrA |
107dBrA |
|
Frequency response |
20Hz-90kHz |
20Hz-90kHz |
|
Output Port |
3.5 PO |
4.4 РО |
|
Voltage Swing |
2.39Vrms |
4.72Vrms |
|
Output power |
179mW |
697mW |
|
Minimum THD |
0.0006% |
0.0003% |
|
Noise floor |
2.0uVrms |
2.5uVrms |
|
SNR |
121dBrA |
126dBrA |
|
Dynamic range |
122.5dB |
126dB |
|
Channel separation |
70dBrA |
109dBrA |
|
Frequency response |
20Hz-90kHz |
20Hz-90kHz |
General Specifications
|
Model |
HiBy R6Pro MAX |
|
Operating System |
Android 12 |
|
SOC |
Snapdragon 665 (8-core 1.8GHz Kryo 260) |
|
DAC |
Dual ES9039MS PRO |
|
Audio formats |
DSD 1024 PCM 768kHz/32bit MQA 16X |
Audio Format Support
| Analog output ports |
3.5mm PO, 4.4mm BAL 3.5mm Line out, 4.4mm BAL Line out |
| Digital Output Ports | USB-C, Coaxial digital via USB type-C |
Wireless functionality
|
WiFi bands |
2.4GHz, 5GHz |
|
Bluetooth version |
Bluetooth 5.0 (supports bidirectional audio 1/0) |
|
Hi-res Bluetooth codec support |
VAT, LDAC, aptX (Transmit only). aptX HD (Transmit only), AAC, SBC |
|
WiFi audio capability |
DLNA, HiByLink |
Display
|
Size |
5.9 inches diagonal |
|
Display type |
IPS |
|
Resolution |
1080*2160 |
Storage
|
RAM |
6GB (LPDDR4x-1866) |
|
ROM |
128GB |
|
USB ports |
Supporting USB 2.0 and 3.2 Gen 1, max throughput 5Gbps |
|
Micro SD |
2TB |
Chassis
|
Colour choices |
Black, Blue |
|
Body material |
Titanium alloy chassis, glass back panel |
|
Dimensions |
147.45*75.2*21.8mm |
|
Weight |
425g |
Power
|
Charging |
9V-2A or 5V=0.5A |
|
Battery capacity |
8200mAh/3.8V |
|
Play time |
3.5mmPO: 10h; 4.4mmBAL: 9h |
|
Charging protocol |
PD 3.1, 40W |
|
Charging time |
<3h (0%-100%) |
Misc
|
Firmware updates |
Supports OTA online upgrade |
|
Font size |
Adjustable |
|
Third party app installation |
Unlimited |
