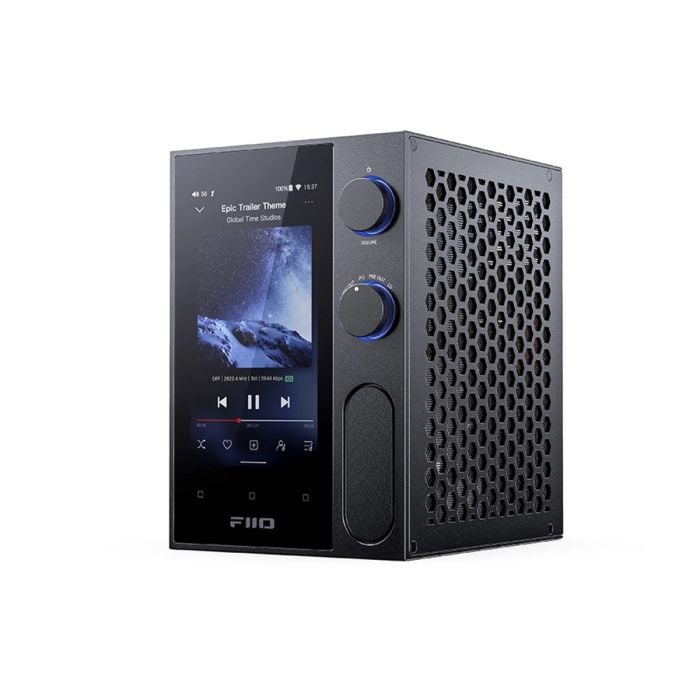

Fiio R7 All-In-One Streaming Desktop DAC/Amp/Player
Master of All Trades: Desktop high-resolution transmitter, decoder and headphone amplifier in one unit!
- Australian Stock
- Australian Warranty
- Authorised Reseller
Found it cheaper somewhere else? Request a price match.
Don't risk purchasing a fake!
MiniDisc are Authorised Resellers
21 Day Change of Mind Returns
Terms and conditions apply
Free Shipping Australia Wide
Free Shipping & Express available
Unmatched advice and support
Always happy to help
Desktop high-resolution transmitter, decoder and headphone amplifier all-in-one unit
Building a desktop HiFi system has always been full of compromises. Stacking various brands of equipment together makes it hard to have an elegant and compact setup. For streaming media, such as a setup usually brings an unacceptable experience. But now there is a new solution.
A new FiiO HiFi desktop experience is now available, with the R7 serving as the centerpiece.
Key to a brand new world of HiFi desktop experience
The R7 combines transmitter/decoder/amp/preamp/media playback functions into one unit. Besides numerous connections and expansion capabilities as well as a wide variety of operating modes, it is also capable of streaming media on a gorgeous portrait screen for an extraordinary user experience. The R7 brings you an attractive-looking, easy-to-use and great-sounding desktop HiFi experience!
Full range of inputs and outputs
The R7 features connectivity far beyond what one would expect from it, helping you to quickly and easily build a desktop HiFi system with the R7 as the heart of it.
The R7 is unique in that it’s easy to use and offers an astounding number of ways to listen. When listening to music streaming apps, easily switch between headphones and speakers or any other output mode. Conveniently listen to songs stored locally on the R7 – thanks to its built-in storage and micro-SD card support - or receive Bluetooth audio from your phone – with support for high- resolution Bluetooth audio formats. With the R7, you can truly listen any way you want.
- Full range of inputs and outputs
- Four output modes
- DC /AC dual power supply
- Eight operating modes
- ES9068AS + THX AAA 788+ (x2)
- Five gain levels
- Portrait media straming
- Android 10
- Customizable RGB lighting
- R7 All-in-one Streaming Amplifier
- Power cord
- USB data cable
- Flat base
- Angled base
- Quick start guide
- Dustproof plug (x2)
- Double-sided tape for base (x4)
- MicroSD card holder
- Fuse
- 6.35mm adapter
GENERAL SPECIFICATIONS |
|
|
Working mode |
Android mode/Pure music mode/USB DAC mode/Bluetooth receiving mode/AirPlay mode/COAX mode/OPT mode/Roon Ready |
|
Screen |
4.97in, 720x1280 |
|
Internal Storage / Free Space |
64GB/≈46GB |
| RAM | 4GB |
| Memory Card | Single SD card expansion, theoretically supports up to 2TB |
| Weight | 1.282kg |
BUTTONS AND INTERFACES |
|
| Button | Volume knob (it has button's function)*1 Output selection knob (similar to button's function)*1 |
| USB | Type-C (USB3.0) * 1 USB A (USB2.0) * 1 (data transfer) |
| Optical Input | Standard TOSLINK |
| Optical Output | Standard TOSLINK |
| Coaxial Input | RCA |
| Coaxial Output | RCA |
| Network Port | 100M RJ45 |
| Toggle Switch | DC/AC switch |
| DC Power In | 6.2mm DC socket |
| Headphone Outputs | 6.35mm, 4.4mm 4-cores XLR |
| Balanced output ports | 3 cores XLR * 2 |
| Single-ended line out ports | RCA * 2 |
POWER PARAMETERS |
|
| Power supply | DC 12V/3A OR AC 100-240V~ 50/60Hz |
SINGLE-ENDED LINE OUTPUT PERFORMANCE PARAMETERS |
|
| THD+N | ＜0.0005%(1kHz/-0dB@10KΩ) |
| Crosstalk | ≥112dB |
| Frequency response | 5Hz~ 80kHz: attenuation < 2dB |
| SNR | ≥ 118.5dB (dbA) |
| Noise Floor | < 2.7uV (dbA) |
| Line Level | 2.2Vrms |
BALANCED LINE OUTPUT PERFORMANCE PARAMETERS |
|
| THD+N | ＜0.0005%(1kHz/0dB@10KΩ) |
| Crosstalk | ≥121dB |
| Frequency response | 20Hz~ 50kHz: attenuation < 2dB |
| SNR | ≥ 125dB (dbA) |
| Noise floor | < 2.5uV (dbA) |
| Line Level | 4.5Vrms |
SINGLE-ENDED HEADPHONE OUTPUT PERFORMANCE PARAMETERS(6.35MM) |
|
| Continuous undistorted output power 1 | L+R≥1450mW +1450mW(16Ω，THD+N＜1%) |
| Continuous undistorted output power 2 | L+R≥750mW +750mW(32Ω，THD+N＜1%) |
| Continuous undistorted output power 3 | L+R≥80mW+80mW (300Ω，THD+N＜1%） |
| Noise floor | < 4uV (dbA) |
| Frequency response | 20Hz~ 80kHz: attenuation < 1dB |
| Output impedance | < 0.4Ω |
| Crosstalk | ≥73dB |
| THD+N | < 0.0005% (1kHz / -6dB@32 Ω) |
| SNR | ≥ 124dB (dbA) |
| MAX Output Voltage | 14Vp-p |
BALANCED HEADPHONE OUTPUT PERFORMANCE PARAMETERS(4.4MM/XLR4) |
|
| Continuous undistorted output power 1 | L+R≥800mW+800mW (16Ω，THD+N＜1%) |
| Continuous undistorted output power 2 | L+R≥3000mW +3000mW(32Ω，THD+N＜1%) |
| Continuous undistorted output power 3 | L+R≥320mW+320mW (300Ω，THD+N＜1%） |
| Noise floor | < 7.5uV (dbA) |
| Frequency response | 5Hz~ 80kHz: attenuation < 2dB |
| Output impedance | < 0.5Ω |
| Crosstalk | ≥116dB |
| THD+N | < 0.00048% (1kHz / -6dB@32 Ω) |
| SNR | ≥ 122dB (dbA) |
| MAX Output Voltage | 27.7Vp-p |
