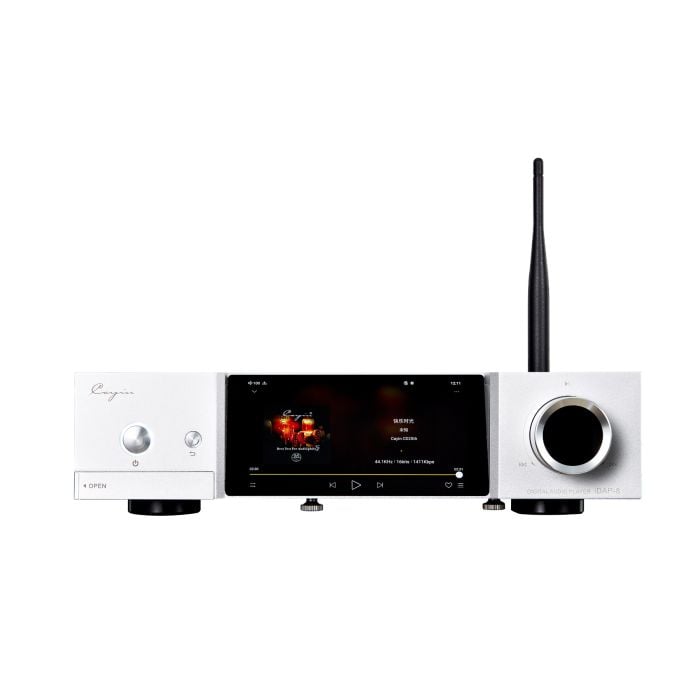

Cayin iDAP-8 Android Music Streamer
Fully customised Android music streamer optimised for audio quality
- Australian Stock
- Australian Warranty
- Authorised Reseller
Found it cheaper somewhere else? Request a price match.
Don't risk purchasing a fake!
MiniDisc are Authorised Resellers
21 Day Change of Mind Returns
Terms and conditions apply
Free Shipping Australia Wide
Free Shipping & Express available
Unmatched advice and support
Always happy to help
This is a request only. We have the right to refuse any request at our discretion. We only accept request from stores that have brand new stock and are authorised Australian dealers. We do not accept request from auction sites and market places.
All your Music, from Any Source
The iDAP-8 is a fully featured music streamer which supports direct streaming from its onboard HDD, SD Card, External USB, Network Storage devices, and streaming audio platforms via its customised Android interface.
Connectivity is comprehensive, with support for gigabit LAN and 2.4Ghz/5Ghz dual band wifi connections, and a comprehensive set of digital outputs: USB, SPDIF, AES/EBU, Optical, Coaxial (RCA/BNC), AES/EBU and I2S digital.
Cayin i-Series is a suite of three products desktop products designed around optimal audio performance. Choose individual i-Series units for your needs, or combine all 3 for the ultimate high performance, all in-one headphone listening system.
- Direct playback from NAS
- Expandable storage with 2.5" HDD (less than 4TB)
- 6GB RAM / 128gb storage
- USB, SPDIF, AES/EBU, Optical, Coaxial (RCA/BNC), AES/EBU and I2S digital outputs
- 5" 1920x1080 TFT multi touch display
- Gigabit LAN / Dual 2.4/5Ghz WiFi
- HibyCast / HibyLink support
General Specifications
| SoC | Snapdragon 660 2.2GHz |
| Memory | 6GB LPDDR4 RAM |
| System | Customized Android 9, Google Play pre-installed, Direct Transport Architecture with Android source rate conversion bypass |
| Preinstalled Applications | Cayin Music, HiByMusic (with HiByCast) |
| Storage |
128GB Internal Storage 2.5" SATA3.0 x1 (up to 4TB) SD x1 (up to 1TB) External USB |
| File format | DSF/DFF/SACD-ISO/FLAC/AIFF/WAV/APE/ALAC/WMA/MP3/AAC/OGG/Opus |
| Oscillator | Accusilicon Ultra-low 20ppm phase noise Femtosecond Oscillator x 2 |
| WiFi | 2.4G/5G 5dBi High Gain with 802.11a/b/g/n/ac support |
| LAN | IEEE 802.3/EEE 802.3U supporting 1000M/100M/10M |
| Bluetooth | BTv5.0 + BR/EDR + BLE |
| Digital Outputs | USB Audio, AES/EBU, Optical, Coaxial (RCA), Coaxial (BNC), I2S Digital |
| Power | 45W toroidal transformer |
| Weight | Approx 4.4kg |
| Dimensions | 270mm x 215mm x 70 mm (LxWxH) |
Digital Output
| USB, I2S Digital |
PCM Output: 16Bit to 32Bit, 44.1kHz to 768kHz DSD Output: DSD-64 to DSD512 (22.6MHz) |
| Coaxial, Optical, Output, AES/EBU |
PCM Output: 16Bit to 32Bit, 44. 1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
| Bluetooth (Transmit and Receive) | LDAC (up to 96kHZ), UAT (up to 192kHZ), AAC (up to 48KHZ), SBC (up to 48KHZ) |
